The Role of CNC Machining in Enhancing Die Casting Accuracy
Core Keywords: die casting accuracy
In the world of precision manufacturing, achieving consistent die casting accuracy is a key concern—especially for industries like automotive, aerospace, and medical devices. While traditional die casting methods offer fast and economical production, dimensional deviations and surface imperfections are common challenges. This is where CNC machining steps in as a vital secondary process to meet tight tolerances and improve product consistency.
How CNC Machining Enhances Die Casting Accuracy
Despite modern advances, the typical tolerance level for as-cast die casting parts ranges from ±0.2 mm to ±0.5 mm depending on the casting size and geometry. For high-performance components, especially those with mating surfaces or mechanical interfaces, these variances are not acceptable.
In fact, according to a 2024 industry survey by Precision Manufacturing Weekly, over 67% of die casting users require post-processing to meet final tolerance specifications.

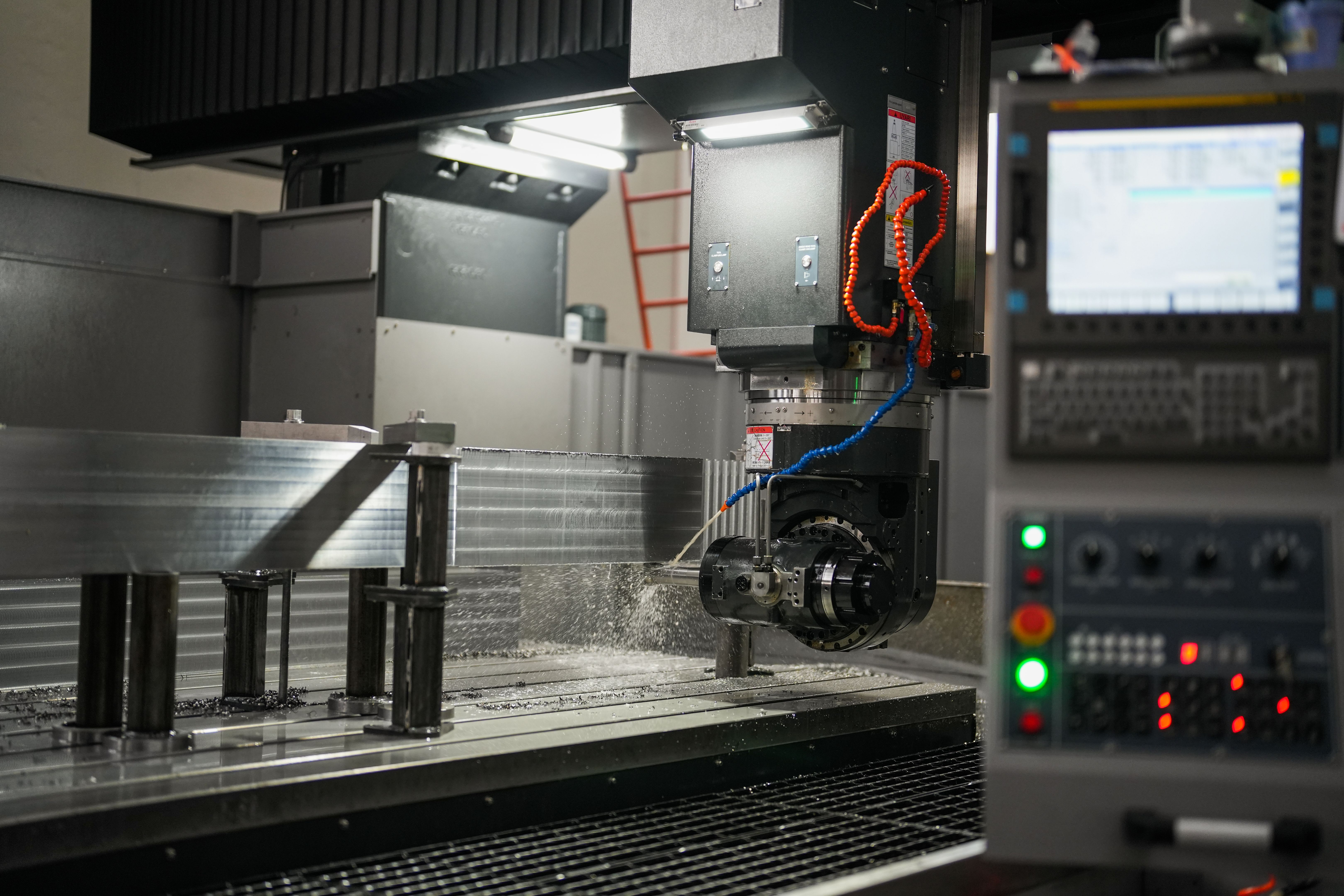

CNC machining—short for Computer Numerical Control machining—allows manufacturers to refine critical surfaces, drill precise holes, and mill flat planes on die castings. Modern 5-axis CNC machines can achieve tolerances as tight as ±0.005 mm, enabling die-cast components to function reliably in assemblies with zero room for error.
Common CNC operations applied to die cast parts include:
1. Face milling for flatness improvement
2. Boring and drilling for alignment holes
3. Contour machining for functional interfaces
4. Thread tapping for bolt-ready installations
Real-World Data Supporting Die Casting Accuracy Improvements
In one case study from a Tier-1 automotive supplier, CNC-finishing was applied to aluminum die-cast gearbox housings. The as-cast tolerance was ±0.25 mm on the mounting surface, which was improved to ±0.01 mm after CNC machining. This refinement led to a 30% reduction in gear alignment failures during assembly and a measurable drop in noise/vibration during end-use.
To further illustrate the improvement in die casting accuracy, here's a comparison between typical as-cast tolerances and CNC-machined tolerances:
| Parameter | As-Cast Die Casting | After CNC Machining |
| Dimensional Tolerance | ±0.2 mm – ±0.5 mm | ±0.005 mm – ±0.02 mm |
| Surface Flatness | Often requires secondary grinding | Achieved directly via face milling |
| Hole Alignment | Variable, requires reaming | Precise, drilled to spec |
| Thread Features | Not suitable | CNC tapping with thread pitch control |
| Surface Roughness (Ra) | 6.3 – 12.5 µm | ≤ 1.6 µm |
Another example is in medical device casings, where CNC post-machining enabled batch-to-batch repeatability within ±0.008 mm, satisfying ISO 13485 standards for device safety and reliability.
Cost vs. Accuracy: Why CNC Justifies the Investment
While CNC machining adds time and cost, the benefits often outweigh the investment. Manufacturers who integrate CNC as part of the die casting workflow report:
-Up to 45% improvement in assembly fit
-Lower rejection rates (by 20–35%) due to fewer dimensional defects
-Higher surface finish consistency for cosmetic parts (Ra ≤ 1.6 µm)
Conclusion
The synergy between die casting and CNC machining is more relevant than ever. As demand grows for tighter tolerance control and complex geometries, CNC machining becomes indispensable for achieving die casting accuracy in critical components. By understanding where and how to apply CNC, manufacturers can unlock better product performance and long-term reliability.
